Alfa Laval Spray Dryer Tower - 400 kg/h, ├ÿ4800mm

- Alfa Laval spray drying tower (tour d'atomisation), complete drying chamber

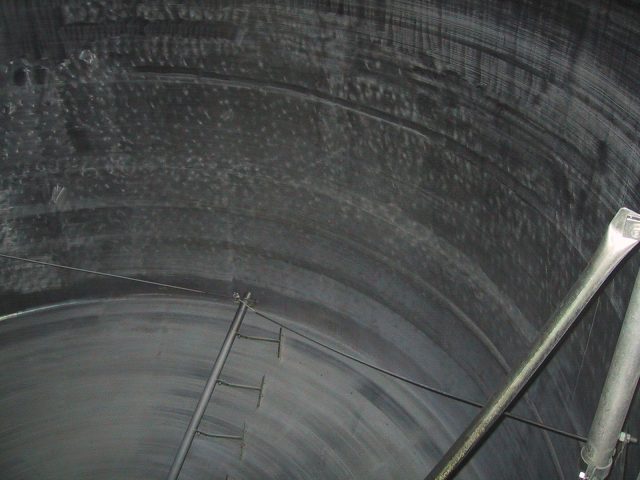

- Large cylindrical/conical stainless steel chamber, diameter approx. 4800mm, cylindrical height approx. 4250mm
- Rated drying capacity approx. 400 kg/h

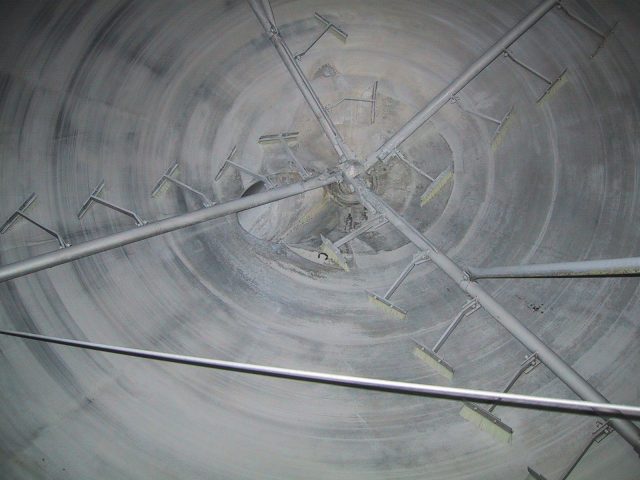

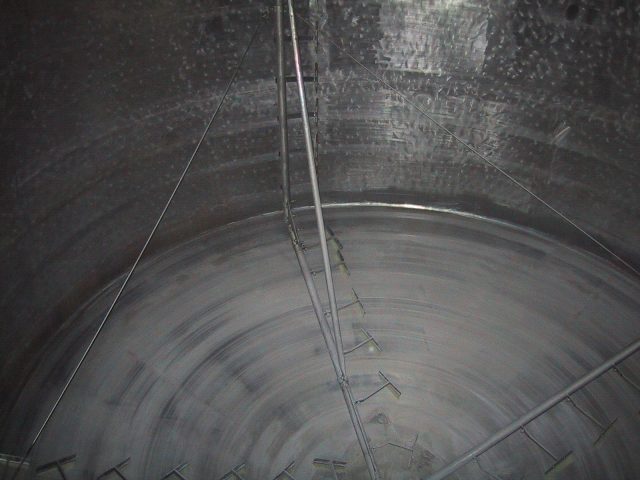

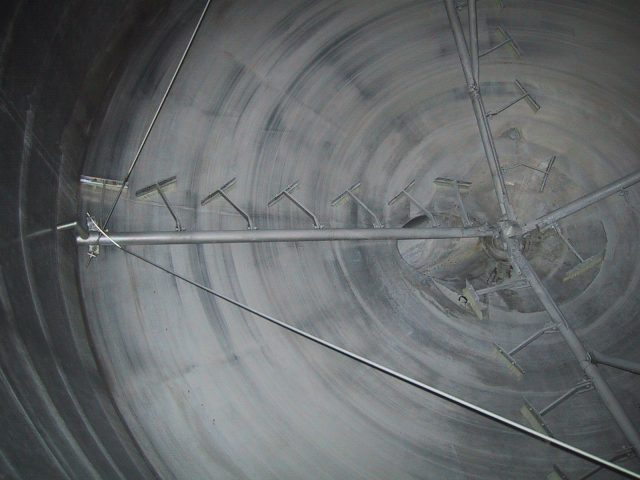

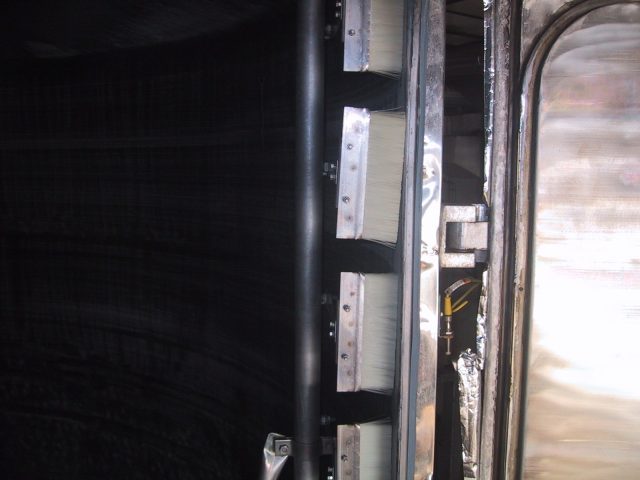

- Internal wall brush cleaning system mounted on rotating arms for automatic wall scraping

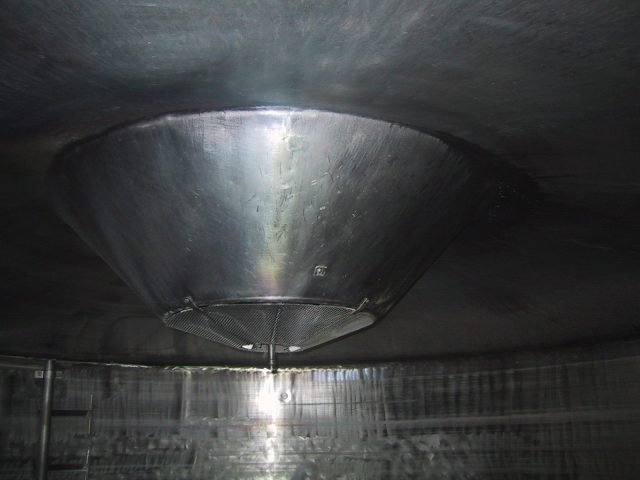

- Conical air distributor / diffuser cone at top inlet with integrated nozzle and mesh filter
- Includes original P&ID flow diagram (feed, hot air supply, cyclone, filters, powder room ducting)
- Complete process line reference: feed tank, heater, atomiser, cyclone separator and exhaust filtration
- Removed from a dairy/food processing plant, available for inspection
- Suitable for milk powder, whey, or similar spray-dried products
- Contact us for full technical drawing, remaining ancillary equipment and viewing details
